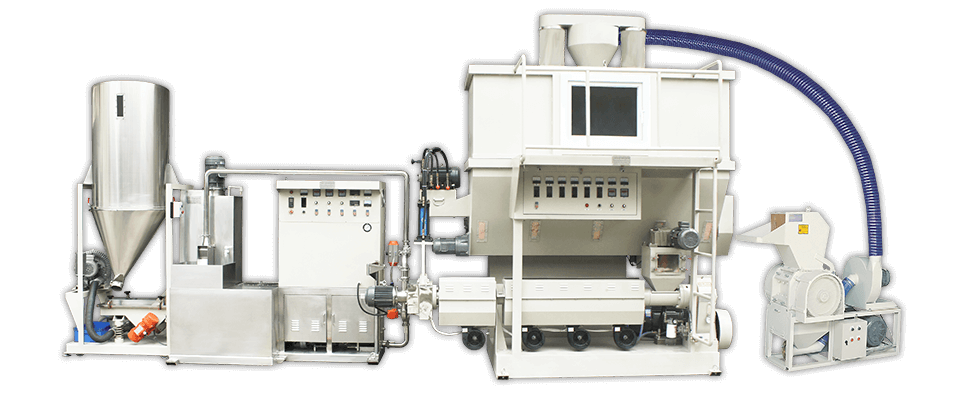

Home > Products > FILM RECYCLING > Under Water Pelletizing For Film And Woven Sacks Recycling
Application For all types of thin flakes and film. Direct die face cutting, cooling, dewatering and pelletizing.
Model No. RFU-80 RFU-120
Output (LDPE) 100~150 Kg/h 300~400 Kg/h
Install Dimension (M) 9.5 x 1.8 x 3.4 11.2 x 5.7 x 2.2
Total weight 3700 kg 5800 kg

(1) MAIN EXTRUDER :

Screw dia. Ø80 Ø120
L/D ratio 30 : 1 30 : 1
Main motor (AC) 40HP TECO 125HP TECO
VF-variable frequency inverter driven VF-variable frequency inverter driven
Gearbox gear material : 20CrNiMoA / carburizing quenching
gearbox oil cooling system : heat exchanger/ oil filter system
PID thermo controller 5 zones 7 zones
Barrel air cooling 4 sets 6 sets
(auto-start) (auto-start)
Screw material treatment SACM-645 Nitride treatment, Chrome-plated or SCM-4 bimetallic
Screen changer hydraulic hydraulic
Machine size (mm) 3100 x 1700 x 3330 4700 x 2000 x 3500

(2) ADJUSTABLE SPEED FEEDING HOPPER :

Storage box motor 0.4 KW VF - fine tuning control
feeding motor 0.75 KW VF - fine tuning control
Hopper motor 1.5 KW VF - fine tuning control

(3) COOLING & DEHYDRATING CONTROL SYSTEM :

Dehydrator motor 2 HP 2 HP
Water pump motor 3 HP 3 HP
Water pipe dia. Ø50 Ø50
Plate heat exchanger 116 x 160 x 286mm 116 x 160 x 286mm
Chiller motor 50HP 50HP
Machine size(mm) 2550 x 700 x 2080 2550 x 700 x 2080

(4) PELLETS’ CUTTING MACHINE :

Motor 5 HP 5 HP
VF - inverter driven VF - inverter driven
Cutter material Alloy knife x 6 - 1set(replaceable) Alloy knife x 6 - 1set(replaceable)
Die face material Tungsten steel Tungsten steel
Die head NON STOP Double hydraulic filter changer including melt pressure indicator NON STOP Double hydraulic filter changer including melt pressure indicator

(5) Crusher :

Main motor 20 HP 40 HP
blower motor 3 HP 5 HP
Stationary knife 4 pcs 4 pcs
Rotary cutter 3 pcs 6 pcs

(1) HYDRAULIC TYPE AUTOMATIC RELEASE SCREW :

Model No. RFU-80 RFU-120
Hydraulic press 2 HP

(2) VACUUM DEVICE :

Motor / rpm 2HP / 1750 rpm 5 HP / 1750 rpm
Liquid sealing volume 6 liter / min

(3) VIBRATING PELLET SELECTOR & STORAGE TANK :

Vibrating motor 1/4HP x 2 sets
Sieving screen Upper layer Ø 6mm, Bottom 2mm x 20L / 304# stainless steel
Storage tank Volume : 620 liter / 304# stainless steel
blower motor 2.2 KW 3 KW
Machine size (mm) 1400 x 1100 x 2800 1400 x 1100 x 2800
Machine weight 270 Kg 300 Kg
